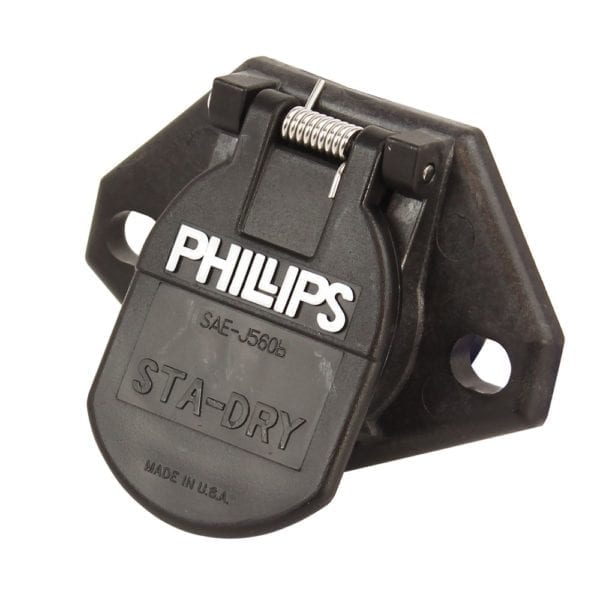

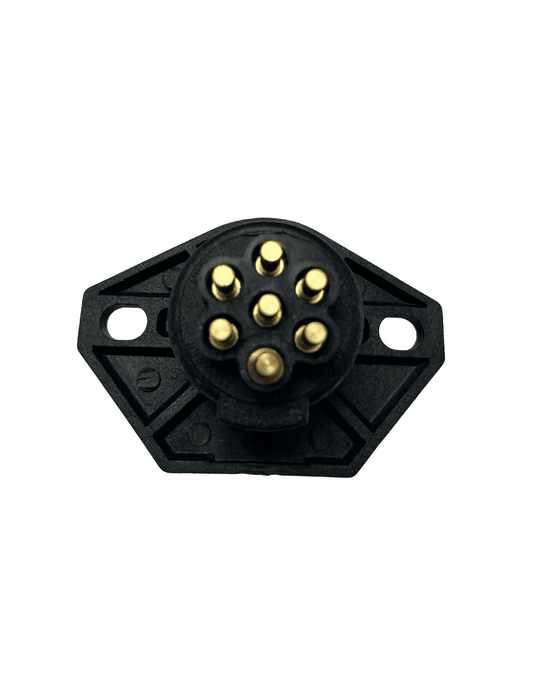

STA-DRY® Ring & Bullet Termination Sockets 16-724
SKU 16-724/16724
by Phillips
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Prevents corrosion from entering electrical system
- Inner cavity sealed to prevent contaminants from passing to wire harness
- Non-corrosive housing: resists magnesium chloride, salt, oils, grease, and fuels
- Extended front barrel for additional cable support, slanted 5° for moisture drain
- Unbreakable housing and lid, with stainless steel hinge pin and spring
- Meets SAE J560 specifications
- Split brass pins for superior conductivity
- For added protection against moisture, use socket boot P/N 15-740
- For solid pin sockets, please contact customer service
- 16-722, and 16-7222 accepts #8 ring terminals
- 16-724, and 16-725, and 16-7242 accept .180 bullets
- 16-724 and 16-7242 recommended for use with Phillips QCS2®
